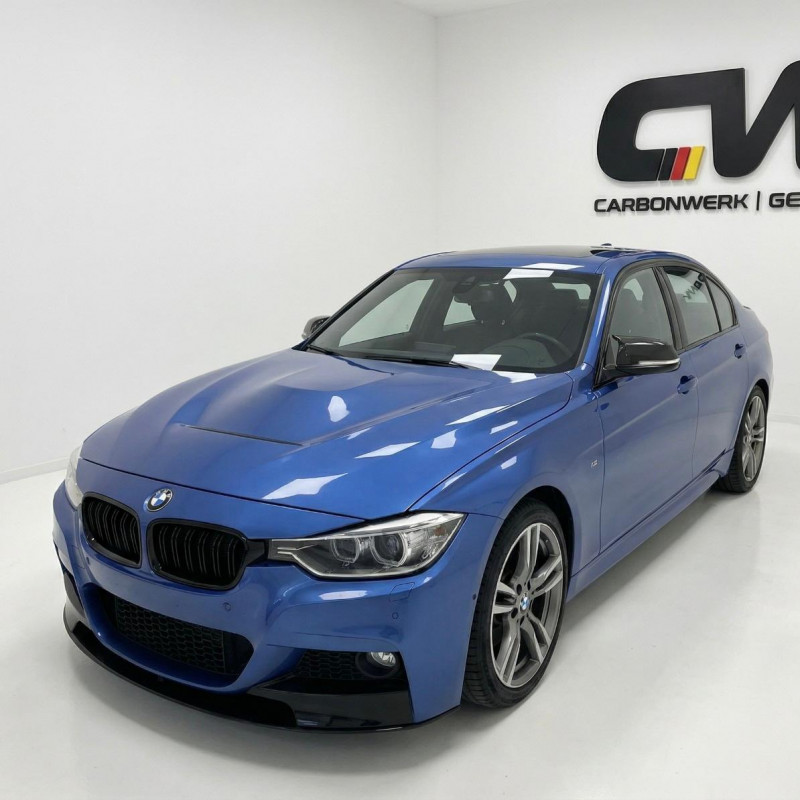

1580 - Bonnet GTS Aluminium fits BMW 3 Series 4 F30 F31 F32 F33 F36

These are not original BMW products. The name is only used to identify the vehicle model.

Identifiers such as BMW, M,1M, M2, M3, M4, M5, M6, M8 are the property of BMW AG.

Article features:

Very good fitting accuracy

.

Fixes to the original retaining points

.

Article has a very high quality

Technical details/ fits:
BMW 3 Series + 4 Series - F30 F31 F32 F33 F36

Tips for fitting:

• We recommend having any assembly carried out by a specialist workshop in advance.
• To dismantle your old bonnet, you like to take reinforcements, as these can fall from the inside (on the bonnet bracket the screws) during dismantling.
• After loosening the screws on the bracket, you must disconnect all cables etc. that are from the bonnet (depending on the equipment/model, the wiper water nozzles may be attached to the bonnet)
• .
• When you have removed the bonnet, remove the latch and hooks etc. from the old bonnet and fit them to the new bonnet.
• Now replace the bonnet with your CW item and screw it to the original brackets using the screws already removed.
• .
• !CAUTION! - make sure that the bonnet fits exactly as you removed the old one, so that the bonnet does not fit unevenly and may not be able to close.
• When you have tightened everything properly, carefully lower the bonnet and look first to see if it is touching the vehicle on any sides.

• For any queries you may have, please do not hesitate to contact our team .
